Overview

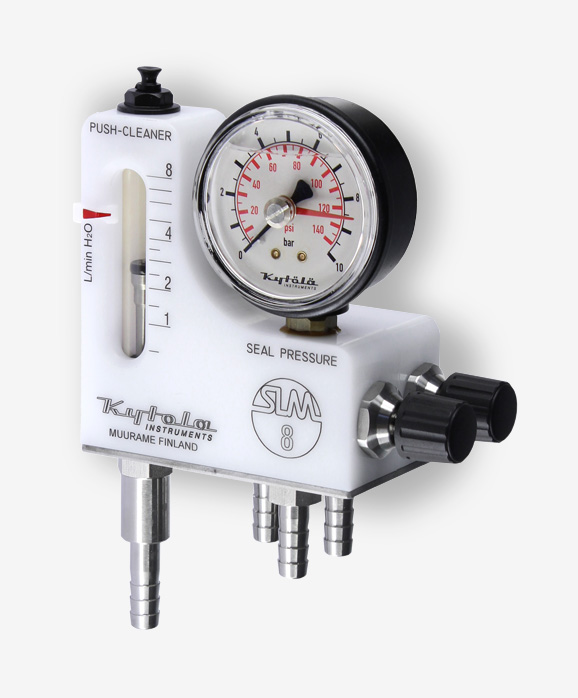

Model SLM is an accurate, efficient and reliable flow meter that is specially designed for applications where uninterrupted seal water flow is required. Proper adjustment of flow and pressure will result in significant water and energy savings.
The strong and compact design ensures maximum resistance to external impact. The SLM has been optimized to withstand contaminated water and it comes with a built-in flow tube cleaner. Its reliable and accurate flow measurement is based on a variable area metering principle using a free-floating float.
The SLM comes in many different models, which guarantees compatibility with all seal types. The SLM can also be easily equipped with an alarm output by installing an inductive proximity sensor. Typical applications are flushing and purge water applications, gland packings, single and double mechanical seals.
Technical data | |
Body material | POM (*PVDF optional material, code "K") |
Flow tube | PSU with standard POM body (*optional borosilicate glass tube, code "L") or borosilicate glass tube with PVDF body, material code "K" (*optional PSU tube, code "KM") |
Metallic parts | AISI 316, float AISI 329 |
O-ring seals | Viton® |
Max. pressure | 20 bar |
Max. temperature | +100°C |
Connectors | 10 mm hose barb connections |
Weight | 1.2 kg incl. package |
*Special construction on request |
